MDMA50P1200TG | Littelfuse
Diode, MDMA50P1200TGAH
Order No.: 74P1609
EAN: 4099891784744
MPN:
MDMA50P1200TG
Unit Price (€ / pc.)
22.2054 € *
Available: 0 pcs.
Leadtime: 19 Weeks **

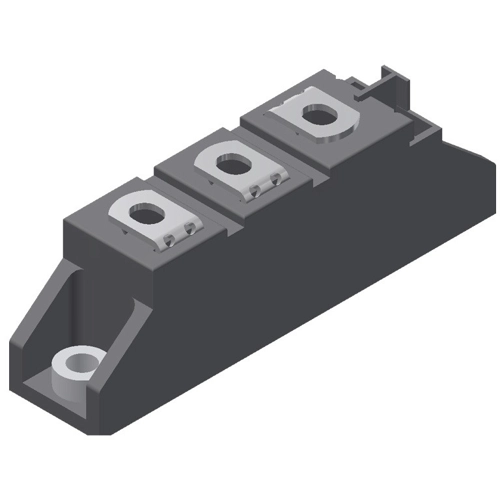

Diode, MDMA50P1200TG, LITTELFUSE
A phase leg with an isolation voltage of 4800 V, advanced power cycling, very low forward voltage drop, very low leakage current, and DCB ceramic base plate.
Features
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chip
- Industry standard outline
- RoHS compliant
- Reduced weight
Applications
- Diode for main rectification
- For single and three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Technical specifications
| Ausführung | Gleichrichtermodul | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Sperrspannung | 1200 V |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
