MDMA700P1600CC | Littelfuse
Diode, MDMA700P1600CCAH
Order No.: 74P1616
EAN: 4099891784812
MPN:
MDMA700P1600CC
Unit Price (€ / pc.)
196.0763 € *
Available: 0 pcs.
Leadtime: 76 Weeks **

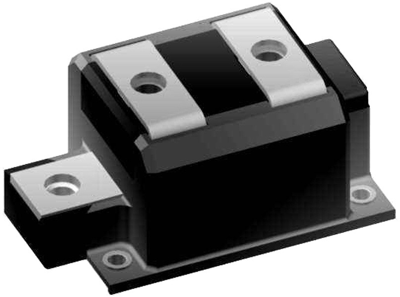

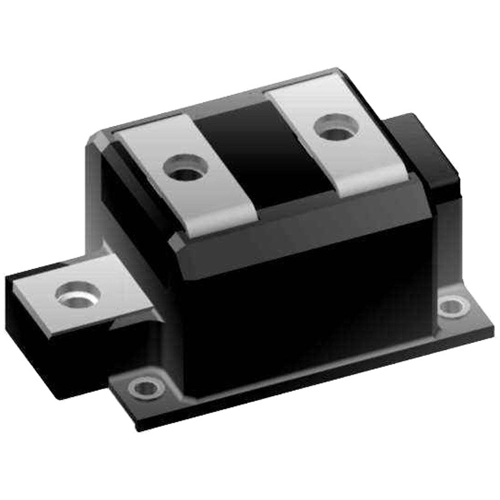

Diode, MDMA700P1600CC, LITTELFUSE
A phase leg with an isolation voltage of 4800 V, advanced power cycling, very low forward voltage drop, very low leakage current, and copper base plate with internally DCB isolation.
Features
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chip
- Industry standard outline
- RoHS compliant
Applications
- Diode for main rectification
- For single and three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Technical specifications
| Version | rectifier module | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Rated blocking voltage | 1600 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
