HE3321A1200 | Littelfuse

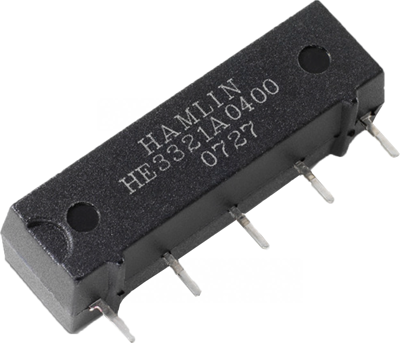

Reed relay, 12 V (DC), 1 Form A (N/O), SIP, 10 W, HE3321A1200
Unit Price (€ / pc.)
4.2721 € *
Available: 67 pcs.
Leadtime: 13 Weeks **
Total Price:
4.27 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2721 €
10 pcs.
3.0464 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature reed relays series HE3300, type Hamlin HE3321.
SiL package; Contact type: 1 x NO or 1 x CO. Contact rating: max. 10 W (1 x NO), 5.0 W (1 x CO). Switching voltage: max. 200 VDC (1 x NO), 175 VDC (1 x CO). Switching current: max. 0.5 A (1 x NO), 0.25 A (1 x CO). On-state current: max. 1.2 A (1 x NO), 1.5 A (1 x CO). Reverse voltage contacts/coil: min. 2500 VAC. Contact resistance: max. 150 mohm (1 x NO), 200 mohm (1 x changeover). Response/release time: max. 1.0/1.0 ms (1 x NO), 3.0/3.0 ms (1 x changeover). Operating temperatures: –40 to +85 °C.

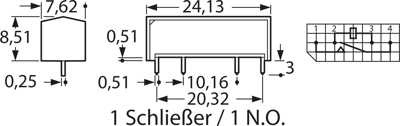

With 1 x NO contact.
Technical attributes (type, rated coil voltage, coil resistance (±10 %)): HE3321A1200, 12 VDC, 500 ohm
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Bauform | SIP | |
| Kontaktart | 1 Schließer | |
| Schaltleistung | 10 W | |
| Schaltspannung (DC) | 200 V | |
| Schaltstrom | 500 mA | |
| Spulenspannung (DC) | 12 V | |
| Spulenwiderstand | 500 Ω |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364900 |
| Originalverpackung | Stange mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
