HE3321C2400 | Littelfuse

Reed relay, 24 V (DC), 1 Form C (NO/NC), SIP, 5 W, HE3321C2400

Order No.: 75P1791
EAN: 4099891886561
MPN:
HE3321C2400
Series: HE3300

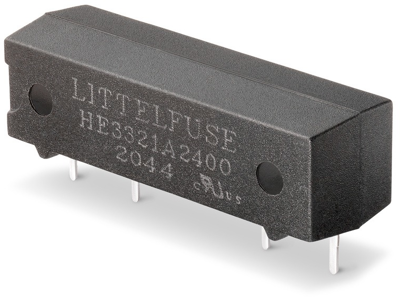

HE3321C2400 Littelfuse Reed Relays
Image may differ
Unit Price (€ / pc.)
4.3911 € *
Available: 0 pcs.
Leadtime: 49 Weeks **
Total Price:
25,292.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5760 pcs.
4.3911 €

Reed relay, HE3321C2400, LITTELFUSE

Miniature reed relay in a single-in-line SIL package with a changeover contact, switching up to 175 VDC at 5 W.

Features

  • Single-in-line configuration allows high packing densities, minimizing space and cost
  • Lower coil power consumption than electromechanical devices
  • Hermetically sealed switching contacts are immune to their environment
  • Transfer molded package gives maximum component protection
  • RoHS compliant
  • UL recognized to UL 508 as an industrial control switch

Applications

  • Security systems
  • Telecom equipment
  • Process control systems
  • Automatic test equipment
  • Instrumentation
Technical specifications
Anschluss THT
Bauform SIP
Kontaktart 1 Wechsler
Rastermaß 20.32 mm
Schaltleistung 5 W
Schaltspannung (AC) 120 V
Schaltspannung (DC) 175 V
Schaltstrom 250 mA
Spulenspannung (DC) 24 V
Spulenwiderstand 2 kΩ
Logistics
Ursprungsland CN
Zolltarifnummer 85364900
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
