HE721A0530 | Littelfuse
Reed relay, 5 V (DC), 1 Form A (N/O), DIP, 10 W, with diode, shielded, HE721A0530
Unit Price (€ / pc.)
4.6648 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

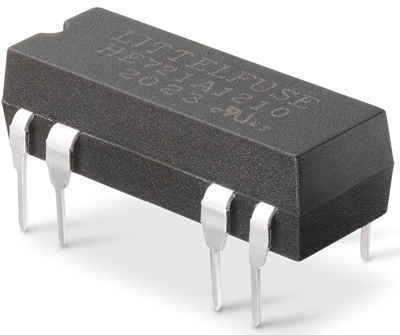

Reed relay, HE721A0530, LITTELFUSE
Miniature reed relay in a dual-in-line DIL package with a normally open contact, switching up to 200 VDC at 10 W.
Features
- Coil suppression diode to protect coil drive circuits
- Lower coil power consumption than electromechanical devices
- Hermetically sealed switching contacts are immune to their environment
- Transfer molded package gives maximum component protection
- RoHS compliant
- UL recognized to UL 508 as an industrial control switch
Applications
- Security systems
- Telecom equipment
- Process control systems
- Automatic test equipment
- Instrumentation
Technical specifications
| Anschluss | THT | |
| Ausführung | mit Diode, geschirmt | |
| Bauform | DIP | |
| Kontaktart | 1 Schließer | |
| Rastermaß | 15.24 mm | |
| Schaltleistung | 10 W | |
| Schaltspannung (AC) | 140 V | |
| Schaltspannung (DC) | 200 V | |
| Schaltstrom | 500 mA | |
| Spulenspannung (DC) | 5 V | |
| Spulenwiderstand | 500 Ω |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
