HE721A1200 | Littelfuse

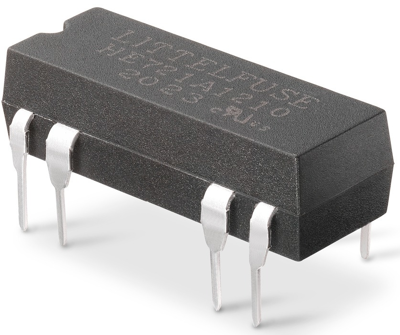

Reed relay, 12 V (DC), 1 Form A (N/O), DIP, 10 W, HE721A1200
Unit Price (€ / pc.)
1.7731 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Reed relay, HE721A1200, LITTELFUSE
Miniature reed relay in a dual-in-line DIL package with a normally open contact, switching up to 200 VDC at 10 W.
Features
- Lower coil power consumption than electromechanical devices
- Hermetically sealed switching contacts are immune to their environment
- Transfer molded package gives maximum component protection
- RoHS compliant
- UL recognized to UL 508 as an industrial control switch
Applications
- Security systems
- Telecom equipment
- Process control systems
- Automatic test equipment
- Instrumentation
Technical specifications
| Anschluss | THT | |
| Bauform | DIP | |
| Kontaktart | 1 Schließer | |
| Rastermaß | 15.24 mm | |
| Schaltleistung | 10 W | |
| Schaltspannung (AC) | 140 V | |
| Schaltspannung (DC) | 200 V | |
| Schaltstrom | 500 mA | |
| Spulenspannung (DC) | 12 V | |
| Spulenwiderstand | 1 kΩ |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
