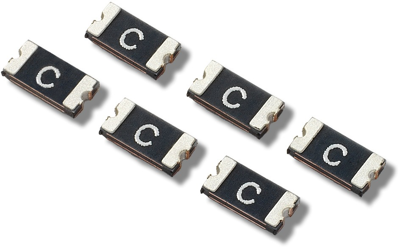

1206L020/30YR | Littelfuse
PTC fuse, self-resetting, SMD 1206, 30 V (DC), 100 A, 420 mA (trip), 200 mA (hold), 1206L020/30YR
Unit Price (€ / pc.)
0.357 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
PTC fuse, 1206L020/30YR, LITTELFUSE
Lead-free surface-mount resettable PPTC provides overcurrent protection for applications where space is at a premium and resettable protection is desired.
Features
- Fast response to fault currents
- Compact design saves board space
- Low resistance
- Low profile
- Compatible with high temperature solders
Applications
- USB peripherals
- Disk drives
- CD-ROMs
- Plug and play protection for motherboards and peripherals
- Mobile phones - battery and port protection
- Disk drives
- PDAs/digital cameras
- Game console port protection
Technical specifications
| Ansprechzeit | 100 ms | |
| Auslösestrom | 420 mA | |
| Bauform | SMD 1206 | |
| Haltestrom | 200 mA | |
| Nennspannung (DC) | 30 V | |
| Nennstrom | 100 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85332900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
