1812L150/16DR | Littelfuse
PTC fuse, self-resetting, SMD 1812, 16 V (DC), 100 A, 3 A (trip), 1.5 A (hold), 1812L150/16DR
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

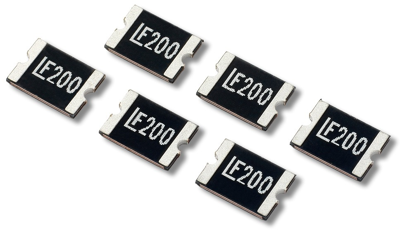

PTC fuse, 1812L150/16DR, LITTELFUSE
The surface-mount resettable PPTC provides surface-mount overcurrent protection for applications where resettable protection is desired.
Features
- RoHS compliant, lead-free and halogen-free
- Fast response
- Compact design
- Low resistance
- Low profile
- Compatible with high temperature solders
Applications
- Plug and play protection for motherboards and peripherals
- USB peripherals
- PCI cards
- Game console port protection
Technical specifications
| Activation time | 500 ms | |
| Trigger current | 3 A | |
| Design | SMD 1812 | |
| max. holding current | 1.5 A | |
| Rated voltage (DC) | 16 V | |
| Rated current | 100 A |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85332900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
