2920L125PR | Littelfuse

Name: PTC fuse, self-resetting, SMD 2920, 15 V (DC), 40 A, 2.5 A (trip), 1.25 A (hold), 2920L125PR
Brand: Littelfuse
SKU: 56P4316
Price: 0.49 EUR
Availability: OutOfStock

PTC fuse, self-resetting, SMD 2920, 15 V (DC), 40 A, 2.5 A (trip), 1.25 A (hold), 2920L125PR

Order No.: 56P4316

EAN: 4099889121797

MPN:

2920L125PR

Series: 2920L

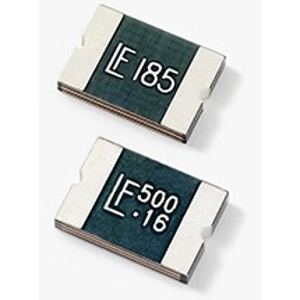

Image may differ

Key Specification:

Design SMD 2920

Trigger current 2.5 A

max. holding current 1.25 A

Rated current 40 A

Show 17 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4879 € *

Available: 0 pcs.

Leadtime: 13 Weeks **

Add to Cart

Total Price:

0.49 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

PTC 15V POLYFUSE SURF MOUNT 2920 1.25A

Technical specifications

Show similar products 0

Download

Declaration of Conformity - EN Declaration of Conformity

Product Change Notification - EN Product Change Notification

Declaration of Conformity - DE Declaration of Conformity

Logistics

MSL	MSL 2A
Original Packaging	Reel with 2,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 17 variations
