2920L500/24SLDR | Littelfuse

PTC fuse, self-resetting, SMD 2920, 24 V (DC), 50 A, 10 A (trip), 5 A (hold), 2920L500/24SLDR

Order No.: 75P0688
EAN: 4099891875534
MPN:
2920L500/24SLDR
Series: 2920L
Littelfuse
2920L500/24SLDR Littelfuse Resettable PTC-Fuses

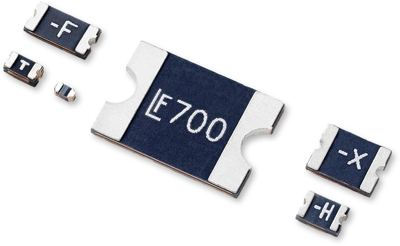

Image may differ
Unit Price (€ / pc.)
1.8921 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
1.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1500 pcs.
1.8921 €

Fuse, 2920L500/24SLDR, LITTELFUSE

The surface-mount PPTC (Polymer Positive Temperature Coefficient) device provides overcurrent protection for applications with ultra-low internal resistance. It allows a higher hold current device in a smaller factor and lower profile as compared to a standard PPTC. It offers ultra-low internal resistance while maintaining the high-level electrical characteristics and performances of standard PPTC products.

Features

  • Very thin profile
  • Miniature size saves board space
  • Fast response to fault currents
  • Compatible with high temperature solders
  • RoHS compliant, lead-free and halogen-free
  • UL recognized and TUV approved

Applications

  • USB peripherals including new USB 3.0/2.0 ports
  • Li-ion/Li-polymer battery packs
  • Smart phones
  • Tablet and notebook PCs
  • E-readers
  • LCD/LED HDTV
  • Computer periperals
  • Digital cameras and video cameras
  • Hard disk drives
  • Game consoles
Technical specifications
Activation time 2 s
Trigger current 10 A
Design SMD 2920
max. holding current 5 A
Rated voltage (DC) 24 V
Rated current 50 A
Logistics
Country of origin CN
Customs tariff number 85332900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
