30R160UU | Littelfuse

Name: PTC fuse, self-resetting, radial, 30 V (DC), 40 A, 3.2 A (trip), 1.6 A (hold), 30R160UU
Brand: Littelfuse
SKU: 50G246
Price: 0.55 EUR
Availability: OutOfStock

PTC fuse, self-resetting, radial, 30 V (DC), 40 A, 3.2 A (trip), 1.6 A (hold), 30R160UU

Order No.: 50G246

EAN: 4099889119176

MPN:

30R160UU

Series: 30R

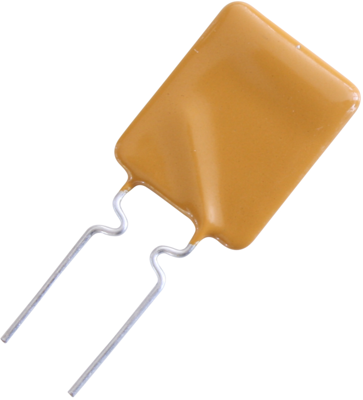

30R160UU Littelfuse Resettable PTC-Fuses Image 2

Image may differ

Key Specification:

Design radial

Trigger current 3.2 A

max. holding current 1.6 A

Rated current 40 A

Show 17 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.5474 € *

Available: 0 pcs.

Leadtime: 11 Weeks **

Add to Cart

Total Price:

0.55 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

PTC fuses with reset, series POLYFUSE, type Littelfuse 30R.

Epoxy polymeric resin, disk shape, with radial terminals

Technical specifications

Show similar products 0

Download

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	TW
Customs tariff number	85361010
Original Packaging	Bulk with 500 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
