DHG10I1800PA | Littelfuse

Sonic fast recovery diode, 1800 V (RRM), 10 A, TO-220AB, DHG10I1800PA

Order No.: 74P2990
EAN: 4099891798550
MPN:
DHG10I1800PA
Series: SONIC
Littelfuse
DHG10I1800PA Littelfuse Schottky Diodes

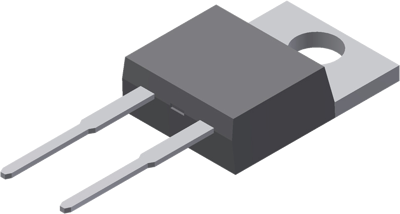

Image may differ
Unit Price (€ / pc.)
2.3562 € *
Available: 0 pcs.
Leadtime: 52 Weeks **
Total Price:
2.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
2.3562 €

Fast recovery diode, DHG10I1800PA, Littelfuse

The DHG10I1800PA is a high performance fast recovery diode with low loss and soft recovery.

Features

  • Planar passivated chips
  • Very low leakage current
  • Very short recovery time
  • Improved thermal behaviour

Applications

  • Antiparallel diode for high frequency switching devices
  • Antisaturation diode
  • Snubber diode
  • Free wheeling diode
  • Rectifiers in switch mode power supplies (SMPS)
  • Uninterruptible power supplies (UPS)
Technical specifications
Number of diodes 1
Version sonic fast recovery diode
Forward Current 10 A
Enclosure TO-220AB
Capacity 3 pF
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly THT
Voltage V RRM (peak reverse voltage) 1800 V
Junction temperature (max.) 175 °C
Junction temperature (min.) -55 °C
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
