DHG30I1200HA | Littelfuse

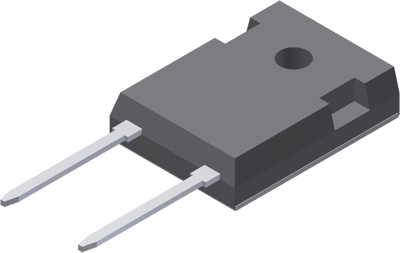

Sonic fast recovery diode, 1200 V (RRM), 30 A, TO-247AD, DHG30I1200HA
Unit Price (€ / pc.)
3.9270 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Fast recovery diode, DHG30I1200HA, Littelfuse
The DHG30I1200HA is a high performance fast recovery diode with low loss and soft recovery.
Features
- Planar passivated chips
- Very low leakage current
- Very short recovery time
- Improved thermal behaviour
Applications
- Antiparallel diode for high frequency switching devices
- Antisaturation diode
- Snubber diode
- Free wheeling diode
- Rectifiers in switch mode power supplies (SMPS)
- Uninterruptible power supplies (UPS)
Technical specifications
| Anzahl der Dioden | 1 | |
| Ausführung | Sonic Fast Recovery Diode | |
| Durchlassstrom | 30 A | |
| Gehäuse | TO-247AD | |
| Kapazität | 11 pF | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 1200 V | |
| Sperrschichttemperatur (max.) | 150 °C | |
| Sperrschichttemperatur (min.) | -55 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85412900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
