DPG60C300HJ | Littelfuse

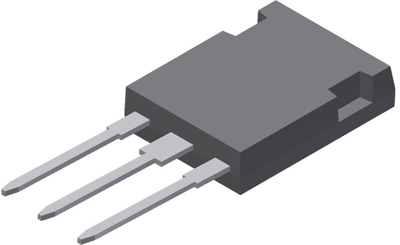

High performance fast recovery diode, 300 V (RRM), 30 A, ISOPLUS247, DPG60C300HJ
Order No.: 74P1289
EAN: 4099891781545
MPN:
DPG60C300HJ
Unit Price (€ / pc.)
10.2102 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Recovery diode, DPG60C300HJ, Littelfuse
High performance fast recovery diode with an isolation voltage of 3600 V, very low leakage current and a very low Irm-value, an avalanche voltage rating for reliable operation, DCB ceramic on the backside and reduced weight.
Features
- Planar passivated chip
- Very short recovery time
- Improved thermal behavior
- Very soft recovery behaviour
- Soft reverse recovery for low EMI/RFI
- Low Irm reduces power dissipation within the diode
- Low Irm reduces turn-on loss in the commutating switch
- Industry standard outline
- RoHS compliant
- Epoxy meets UL 94 V-0
- Advanced power cycling
- Soldering pins for PCB mounting
Applications
- Antiparallel diode for high frequency switching devices
- Antisaturation diode
- Snubber diode
- Free wheeling diode
- Rectifiers in switch mode power supplies (SMPS)
- Uninterruptible power supplies (UPS)
Technical specifications
| Ausführung | High Performance Fast Recovery Diode | |
| Durchlassstrom | 30 A | |
| Gehäuse | ISOPLUS247 | |
| Kapazität | 60 pF | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 300 V | |
| Sperrschichttemperatur (max.) | 175 °C | |
| Sperrschichttemperatur (min.) | -55 °C |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
