DSA120C150QB | Littelfuse

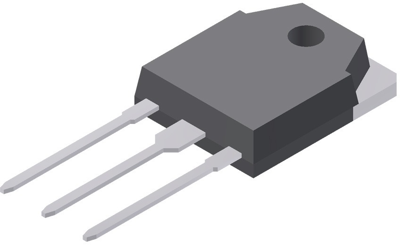

Schottky rectifier diode, 150 V (RRM), 60 A, TO-3P, DSA120C150QB
Order No.: 74P1306
EAN: 4099891781712
MPN:
DSA120C150QB
Unit Price (€ / pc.)
5.4502 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
Schottky rectifier diode, DSA120C150QB, Littelfuse
Schottky rectifier diode with low voltage peak for reduced protection circuits, high reliability circuit operation, and extremely low switching losses.
Features
- Very low Vf
- Low Irm value
- Improved thermal behavior
- Low noise switching
- Terminals finish: 100% pure tin
- This is a Pb - free device
- Epoxy meets UL 94 V-0
Applications
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
Technical specifications
| Ausführung | Schottky-Gleichrichterdiode | |
| Durchlassstrom | 60 A | |
| Gehäuse | TO-3P | |
| Kapazität | 500 pF | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 150 V | |
| Sperrschichttemperatur (max.) | 175 °C | |
| Sperrschichttemperatur (min.) | -55 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
