DSA15IM45UC-TRL | Littelfuse

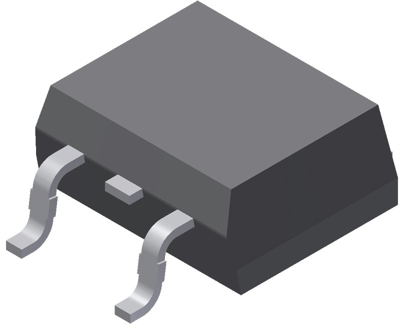

Schottky rectifier diode, 45 V (RRM), 15 A, TO-252AA, DSA15IM45UC-TRL
Order No.: 74P1311
EAN: 4099891781767
MPN:
DSA15IM45UC-TRL
Unit Price (€ / pc.)
1.2019 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Schottky rectifier diode, DSA15IM45UC-TRL, Littelfuse
Schottky rectifier diode with low voltage peak for reduced protection circuits, high reliability circuit operation, and extremely low switching losses.
Features
- Very low Vf
- Low Irm value
- Improved thermal behavior
- Low noise switching
- Terminals finish: 100% pure tin
- This is a Pb - free device
- Epoxy meets UL 94 V-0
Applications
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
Technical specifications
| Version | schottky rectifier diode | |
| Forward Current | 15 A | |
| Enclosure | TO-252AA | |
| Capacity | 256 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 45 V | |
| Junction temperature (max.) | 175 °C | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
