DSA30C100HB | Littelfuse

High performance schottky diode, 100 V (RRM), 15 A, TO-247AD, DSA30C100HB

Order No.: 74P1322
EAN: 4099891781873
MPN:
DSA30C100HB
Littelfuse
DSA30C100HB Littelfuse Schottky Diodes

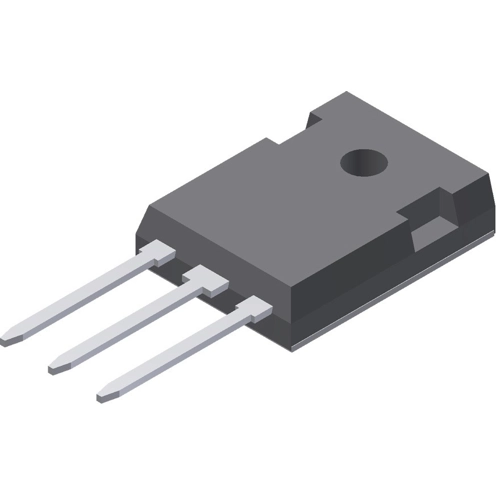

Image may differ
Unit Price (€ / pc.)
2.7251 € *
Available: 0 pcs.
Leadtime: 52 Weeks **
Total Price:
2.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
2.7251 €

Schottky rectifier diode, DSA30C100HB, Littelfuse

High performance schottky diode with low voltage peak for reduced protection circuits, high reliability circuit operation, and extremely low switching losses.

Features

  • Industry standard outline
  • Very low Vf
  • Low Irm value
  • Improved thermal behavior
  • Low noise switching
  • RoHS compliant
  • Epoxy meets UL 94 V-0

Applications

  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
Technical specifications
Version high performance schottky diode
Forward Current 15 A
Enclosure TO-247AD
Capacity 146 pF
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly THT
Voltage V RRM (peak reverse voltage) 100 V
Junction temperature (max.) 175 °C
Junction temperature (min.) -55 °C
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
