DSA30I150PA | Littelfuse

Schottky rectifier diode, 150 V (RRM), 30 A, TO-220AC, DSA30I150PA

Order No.: 74P1337
EAN: 4099891782023
MPN:
DSA30I150PA
Littelfuse
DSA30I150PA Littelfuse Schottky Diodes

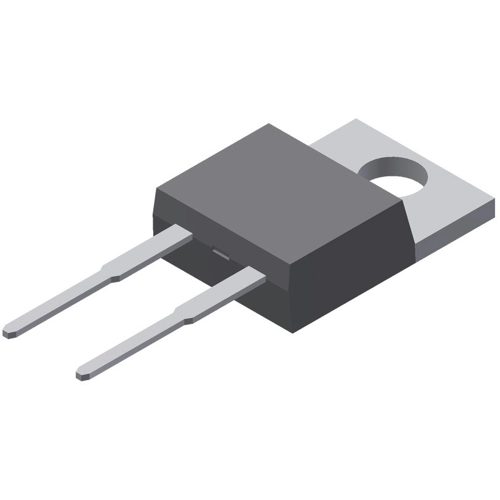

Image may differ
Unit Price (€ / pc.)
1.3685 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
Total Price:
1.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
24000 pcs.
1.3685 €

Schottky rectifier diode, DSA30I150PA, Littelfuse

Schottky rectifier single diode with low voltage peak for reduced protection circuits, high reliability circuit operation, and extremely low switching losses.

Features

  • Low loss and soft recovery
  • High performance schottky diode
  • Very low Vf
  • Low Irm value
  • Improved thermal behavior
  • Low noise switching
  • Terminals finish: 100% pure tin
  • This is a Pb - free device
  • Epoxy meets UL 94 V-0

Applications

  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
Technical specifications
Number of diodes 1
Version schottky rectifier diode
Forward Current 30 A
Enclosure TO-220AC
Capacity 327 pF
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly THT
Voltage V RRM (peak reverse voltage) 150 V
Junction temperature (max.) 175 °C
Junction temperature (min.) -55 °C
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
