DSA80C100PB | Littelfuse

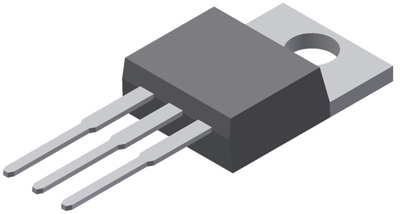

Schottky rectifier diode, 100 V (RRM), 40 A, TO-220AB, DSA80C100PB
Order No.: 74P1350
EAN: 4099891782153
MPN:
DSA80C100PB
Unit Price (€ / pc.)
2.5704 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
Schottky rectifier diode, DSA80C100PB, Littelfuse
Common cathode Schottky rectifier diode with low voltage peak for reduced protection circuits, high reliability circuit operation, and extremely low switching losses.
Features
- Low loss and soft recovery
- High performance schottky diode
- Very low Vf
- Low Irm value
- Improved thermal behavior
- Low noise switching
- Terminals finish: 100% pure tin
- This is a Pb - free device
- Epoxy meets UL 94 V-0
Applications
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
Technical specifications
| Ausführung | Schottky-Gleichrichterdiode | |
| Durchlassstrom | 40 A | |
| Gehäuse | TO-220AB | |
| Kapazität | 420 pF | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 100 V | |
| Sperrschichttemperatur (max.) | 175 °C | |
| Sperrschichttemperatur (min.) | -55 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
