DSEI120-12A | Littelfuse

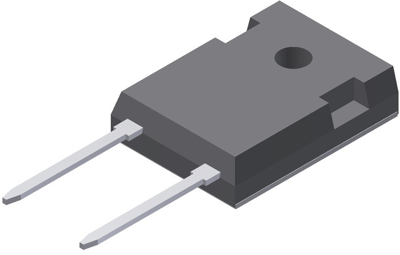

Fast recovery epitaxial diode, 1200 V (RRM), 75 A, TO-247AD, DSEI120-12A
Order No.: 74P1371
EAN: 4099891782368
MPN:
DSEI120-12A
Unit Price (€ / pc.)
12.2213 € *
Available: 0 pcs.
Leadtime: 31 Weeks **
Recovery diode, DSEI120-12A, Littelfuse
Fast recovery epitaxial diode (FRED) has extremely low switching losses, low voltage peaks for reduced protection circuits, soft recovery behavior, and operates at lower temperatures or saves space by reducing the cooling.
Features
- Planar passivated chip
- Very short recovery time
- Improved thermal behavior
- Very low Irm value
- High reliability circuit operation
- Low noise switching
- Low losses
- Industry convenient outline
- RoHS compliant
- Epoxy meets UL 94 V-0
Applications
- Antiparallel diode for high frequency switching devices
- Antisaturation diode
- Snubber diode
- Free wheeling diode in converters and motor control circuits
- Rectifiers in switch mode power supplies (SMPS)
- Inductive heating and melting
- Uninterruptible power supplies (UPS)
- Ultrasonic cleaners and welders
Technical specifications
| Number of diodes | 1 | |
| Version | fast recovery epitaxial diode | |
| Forward Current | 75 A | |
| Enclosure | TO-247AD | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Voltage V RRM (peak reverse voltage) | 1200 V | |
| Junction temperature (max.) | 150 °C | |
| Junction temperature (min.) | -40 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
