DSEP15-12CR | Littelfuse

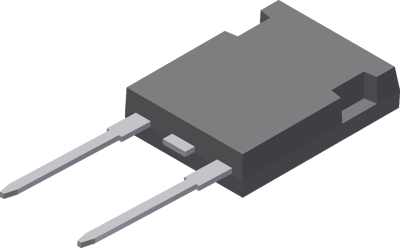

Fast recovery diode, 1200 V (RRM), 15 A, ISOPLUS247, DSEP15-12CR
Order No.: 74P1432
EAN: 4099891782979
MPN:
DSEP15-12CR
Unit Price (€ / pc.)
8.3538 € *
Available: 0 pcs.
Leadtime: 29 Weeks **
Recovery diode, DSEP15-12CR, Littelfuse
High performance dynamic fast recovery diode with an isolation voltage of 3600 V, soft reverse recovery for low EMI/RFI, and very low leakage current. The low Irm reduces power dissipation within the diode and turn-on loss in the commutating switch.
Features
- Planar passivated chip
- Very short recovery time
- Improved thermal behavior
- Very low Irm value
- Very soft recovery behaviour
- Industry standard outline
- RoHS compliant
- Epoxy meets UL 94 V-0
- Soldering pins for PCB mounting
- Backside: DCB ceramic
- Reduced weight
- Advanced power cycling
Applications
- Antiparallel diode for high frequency switching devices
- Antisaturation diode
- Snubber diode
- Free wheeling diode
- Rectifiers in switch mode power supplies (SMPS)
- Uninterruptible power supplies (UPS)
Technical specifications
| Number of diodes | 1 | |
| Version | Fast recovery diode | |
| Forward Current | 15 A | |
| Enclosure | ISOPLUS247 | |
| Capacity | 9 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Voltage V RRM (peak reverse voltage) | 1200 V | |
| Junction temperature (max.) | 175 °C | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
