DSEP2X25-12C | Littelfuse

Fast recovery diode, 1200 V (RRM), 25 A, SOT-227B, DSEP2X25-12C

Order No.: 74P1439
EAN: 4099891783044
MPN:
DSEP2X25-12C
Littelfuse
DSEP2X25-12C Littelfuse Schottky Diodes

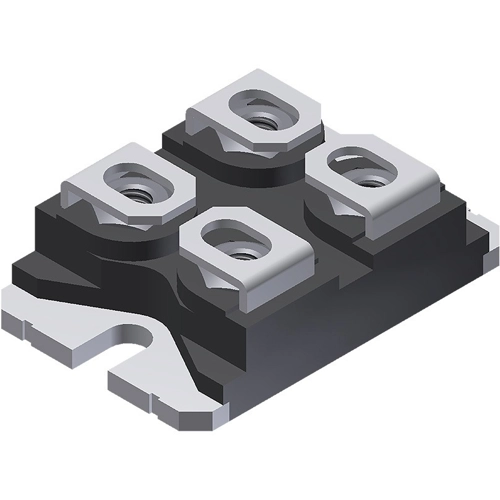

Image may differ
Unit Price (€ / pc.)
28.0364 € *
Available: 0 pcs.
Leadtime: 29 Weeks **
Total Price:
28.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
28.0364 €

Recovery diode, DSEP2X25-12C, Littelfuse

High performance dynamic fast recovery diode with an isolation voltage of 3000 V, soft reverse recovery for low EMI/RFI, very low leakage current, and copper base plate with internal DCB isolation.

Features

  • Planar passivated chip
  • Very short recovery time
  • Improved thermal behavior
  • Very low Irm value
  • Very soft recovery behaviour
  • Low Irm reduces power dissipation within the diode
  • Low Irm reduces turn-on loss in the commutating switch
  • Industry standard outline
  • RoHS compliant
  • Epoxy meets UL 94 V-0
  • Advanced power cycling

Applications

  • Antiparallel diode for high frequency switching devices
  • Antisaturation diode
  • Snubber diode
  • Free wheeling diode
  • Rectifiers in switch mode power supplies (SMPS)
  • Uninterruptible power supplies (UPS)
Technical specifications
Version Fast recovery diode
Forward Current 25 A
Enclosure SOT-227B
Capacity 18 pF
max. operating temperature 125 °C
min. operating temperature -40 °C
Assembly SMD
Voltage V RRM (peak reverse voltage) 1200 V
Junction temperature (max.) 150 °C
Junction temperature (min.) -40 °C
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
