DSEP30-12CR | Littelfuse

Fast recovery diode, 1200 V (RRM), 30 A, ISOPLUS247, DSEP30-12CR

Order No.: 74P1457
EAN: 4099891783228
MPN:
DSEP30-12CR
Littelfuse
DSEP30-12CR Littelfuse Schottky Diodes

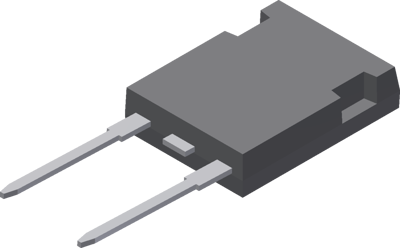

Image may differ
Unit Price (€ / pc.)
9.044 € *
Available: 0 pcs.
Leadtime: 29 Weeks **
Total Price:
9.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
9.044 €

Recovery diode, DSEP30-12CR, Littelfuse

High performance dynamic fast recovery diode with an isolation voltage of 3600 V, soft reverse recovery for low EMI/RFI, and very low leakage current. The low Irm reduces power dissipation within the diode and turn-on loss in the commutating switch.

Features

  • Planar passivated chip
  • Very short recovery time
  • Improved thermal behavior
  • Very low Irm value
  • Very soft recovery behaviour
  • Industry standard outline
  • RoHS compliant
  • Epoxy meets UL 94 V-0
  • Soldering pins for PCB mounting
  • Backside: DCB ceramic
  • Reduced weight
  • Advanced power cycling

Applications

  • Antiparallel diode for high frequency switching devices
  • Antisaturation diode
  • Snubber diode
  • Free wheeling diode
  • Rectifiers in switch mode power supplies (SMPS)
  • Uninterruptible power supplies (UPS)
Technical specifications
Number of diodes 1
Version Fast recovery diode
Forward Current 30 A
Enclosure ISOPLUS247
Capacity 13 pF
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly THT
Voltage V RRM (peak reverse voltage) 1200 V
Junction temperature (max.) 175 °C
Junction temperature (min.) -55 °C
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
