DSEP6-06BS-TRL | Littelfuse
High performance fast recovery diode, 600 V (RRM), 6 A, TO-252AA, DSEP6-06BS-TRL
Order No.: 74P1468
EAN: 4099891783334
MPN:
DSEP6-06BS-TRL
Unit Price (€ / pc.)
1.0115 € *
Available: 0 pcs.
Leadtime: 52 Weeks **

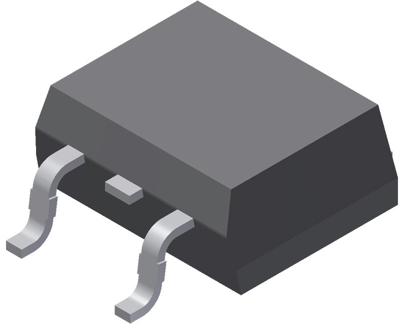

Recovery diode, DSEP6-06BS-TRL, Littelfuse
High performance fast recovery diode with soft reverse recovery for low EMI/RFI, very low leakage current, and avalanche voltage rating for reliable operation.
Features
- Planar passivated chip
- Very short recovery time
- Improved thermal behavior
- Very low Irm value
- Very soft recovery behaviour
- Low Irm reduces power dissipation within the diode
- Low Irm reduces turn-on loss in the commutating switch
- Industry standard outline
- RoHS compliant
- Epoxy meets UL 94 V-0
Applications
- Antiparallel diode for high frequency switching devices
- Antisaturation diode
- Snubber diode
- Free wheeling diode
- Rectifiers in switch mode power supplies (SMPS)
- Uninterruptible power supplies (UPS)
Technical specifications
| Number of diodes | 1 | |
| Version | high performance fast recovery diode | |
| Forward Current | 6 A | |
| Enclosure | TO-252AA | |
| Capacity | 5 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Junction temperature (max.) | 175 °C | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
