DSEP90-12AZ-TUB | Littelfuse

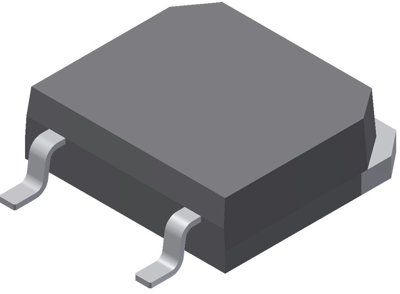

High performance fast recovery diode, 1200 V (RRM), 90 A, TO-268AA, DSEP90-12AZ-TUB
Order No.: 74P1474
EAN: 4099891783396
MPN:
DSEP90-12AZ-TUB
Unit Price (€ / pc.)
9.3296 € *
Available: 0 pcs.
Leadtime: 42 Weeks **
Recovery diode, DSEP90-12AZ-TUB, Littelfuse
High performance fast recovery diode with soft reverse recovery for low EMI/RFI, very low leakage current, and avalanche voltage rating for reliable operation.
Features
- Planar passivated chip
- Very short recovery time
- Improved thermal behavior
- Very low Irm value
- Very soft recovery behaviour
- Low Irm reduces power dissipation within the diode
- Low Irm reduces turn-on loss in the commutating switch
- Industry standard outline
- RoHS compliant
- Epoxy meets UL 94 V-0
Applications
- Antiparallel diode for high frequency switching devices
- Antisaturation diode
- Snubber diode
- Free wheeling diode
- Rectifiers in switch mode power supplies (SMPS)
- Uninterruptible power supplies (UPS)
Technical specifications
| Anzahl der Dioden | 1 | |
| Ausführung | High Performance Fast Recovery Diode | |
| Durchlassstrom | 90 A | |
| Gehäuse | TO-268AA | |
| Kapazität | 48 pF | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Spannung V RRM (Spitzensperrspannung) | 1200 V | |
| Sperrschichttemperatur (max.) | 175 °C | |
| Sperrschichttemperatur (min.) | -55 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
