DSS10-0045B | Littelfuse

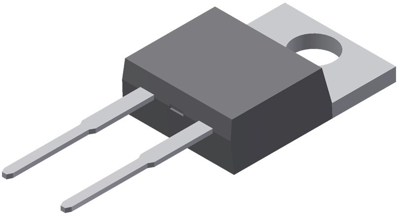

Schottky rectifier diode, 45 V (RRM), 10 A, TO-220AC, DSS10-0045B
Order No.: 74P1475
EAN: 4099891783402
MPN:
DSS10-0045B
Unit Price (€ / pc.)
1.071 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
Schottky rectifier diode, DSS10-0045B, Littelfuse
Schottky rectifier diode with low voltage peak for reduced protection circuits, high reliability circuit operation, and extremely low switching losses.
Features
- Very low Vf
- Low Irm value
- Improved thermal behavior
- Low noise switching
- Terminals finish: 100% pure tin
- This is a Pb - free device
- Epoxy meets UL 94 V-0
Applications
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
Technical specifications
| Anzahl der Dioden | 1 | |
| Ausführung | Schottky-Gleichrichterdiode | |
| Durchlassstrom | 10 A | |
| Gehäuse | TO-220AC | |
| Kapazität | 560 pF | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 45 V | |
| Sperrschichttemperatur (max.) | 150 °C | |
| Sperrschichttemperatur (min.) | -55 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
