DSS20-0015B | Littelfuse

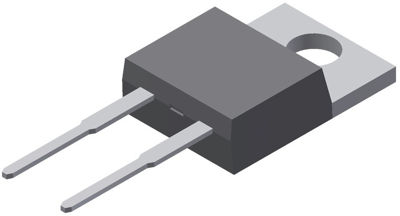

Schottky rectifier diode, 15 V (RRM), 20 A, TO-220AC, DSS20-0015B
Order No.: 74P1483
EAN: 4099891783488
MPN:
DSS20-0015B
Unit Price (€ / pc.)
1.3685 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
Schottky rectifier diode, DSS20-0015B, Littelfuse
Schottky rectifier diode with low voltage peak for reduced protection circuits, high reliability circuit operation, and extremely low switching losses.
Features
- Very low Vf
- Low Irm value
- Improved thermal behavior
- Low noise switching
- Terminals finish: 100% pure tin
- This is a Pb - free device
- Epoxy meets UL 94 V-0
Applications
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
Technical specifications
| Number of diodes | 1 | |
| Version | schottky rectifier diode | |
| Forward Current | 20 A | |
| Enclosure | TO-220AC | |
| Capacity | 1567 pF | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Voltage V RRM (peak reverse voltage) | 15 V | |
| Junction temperature (max.) | 150 °C | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
