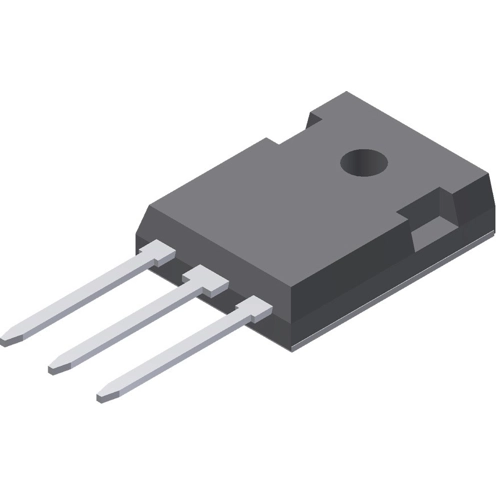

DSSK80-006B | Littelfuse
High performance schottky diode, 60 V (RRM), 40 A, TO-247AD, DSSK80-006B
Order No.: 74P1529
EAN: 4099891783945
MPN:
DSSK80-006B
Unit Price (€ / pc.)
5.3074 € *
Available: 0 pcs.
Leadtime: 48 Weeks **
Schottky diode, DSSK80-006B, Littelfuse
High performance schottky diode with low voltage peak for reduced protection circuits, high reliability circuit operation, and extremely low switching losses.
Features
- Very low Vf
- Low Irm value
- Improved thermal behavior
- Low noise switching
- Epoxy meets UL 94 V-0
- Industry standard outline
- RoHS compliant
Applications
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
Technical specifications
| Ausführung | Hochleistungs-Schottky-Diode | |
| Durchlassstrom | 40 A | |
| Gehäuse | TO-247AD | |
| Kapazität | 1.34 nF | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 60 V | |
| Sperrschichttemperatur (max.) | 150 °C | |
| Sperrschichttemperatur (min.) | -55 °C |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
