CPC1016NTR | Littelfuse

Relay, CPC1016NTR, LITTELFUSE

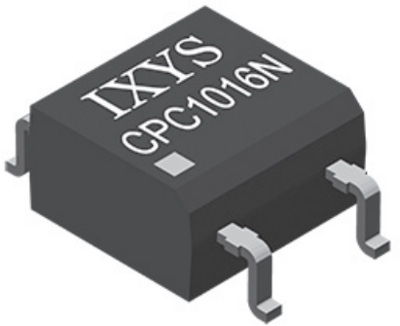

A miniature, low-voltage, low on-resistance, normally open solid state relay in a 4-lead SOP package. The relay uses optically coupled MOSFET technology to provide 1500 Vrms of input/output isolation. The efficient MOSFET switches and photovoltaic die use the IXYS integrated circuits division’s patented OptoMOS architecture, while the optically coupled output is controlled by a highly efficient infrared LED. It uses IXYS integrated circuits division’s state of the art double-molded vertical construction packaging to produce a very compact solid-state relay that is ideal for replacing larger, less-reliable reed and electromechanical relays.

Features

• Low drive power requirements
• 100% solid state
• No EMI/RFI generation
• Flammability rating UL 94 V-0

Applications

• Instrumentation
• Multiplexers
• Data acquisition
• Electronic switching
• I/O subsystems
• Meters
• Medical equipment
• Security systems
• Industrial controls
• Reed relay replacement
