CPC1019N | Littelfuse

Relay, CPC1019N, LITTELFUSE

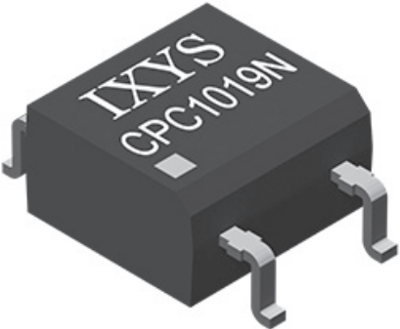

A miniature, low-voltage, low on-resistance, single-pole, normally open solid state relay in a small 4-pin SOP package. Embodying IXYS integrated circuits' patented OptoMOS technology, it comprises a highly efficient infrared LED that is optically coupled to efficient MOSFET output switches to provide 1500 Vrms of input-to-output isolation. IXYS integrated circuits' state of the art double-molded vertical construction packaging produces a very compact solid-state relay that is ideal for replacing larger, less-reliable reed and electromechanical relays.

Features

• No EMI/RFI generation
• Immune to radiated EM fields
• Flammability rating UL 94 V-0

Applications

• Passive infrared detectors, data signalling, sensor circuitry
• Instrumentation
• Multiplexers
• Data acquisition
• Electronic switching
• I/O subsystems
• Utility meters
• Medical equipment
• Industrial controls
• ATE
