CPC1150NTR | Littelfuse
Solid state relay, 350 VDC, 120 mA, PCB mounting, CPC1150NTR
Order No.: 75P1897
EAN: 4099891887629
MPN:
CPC1150NTR
Unit Price (€ / pc.)
1.6422 € *
Available: 0 pcs.
Leadtime: 23 Weeks **

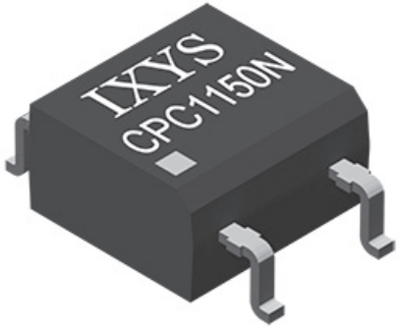

Relay, CPC1150NTR, LITTELFUSE
A miniature single-pole, normally closed solid state relay that uses optically coupled MOSFET technology to provide 1500 Vrms of input to output isolation. Its optically coupled output, which uses the patented OptoMOS architecture, is controlled by a highly efficient infrared LED. State of the art double-molded vertical construction packaging enables it to be one of the world’s smallest 4-pin solid-state relays. It offers board space savings over the competitor’s larger 4-pin SOP relay.
Features
- Low drive power requirements
- High reliability
- No EMI/RFI generation
- Flammability rating UL 94 V-0
Applications
- Telecom switching
- Tip/ring circuits
- Modem switching
- Hook switch
- Dial pulsing
- Ground start
- Ringing injection
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Security
- Industrial controls
Technical specifications
| LED display | Yes | |
| Assembly | Leiterplattenmontage | |
| Rated current | 120 mA | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 350 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
