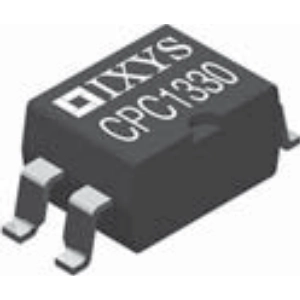

CPC1330G | Littelfuse
Solid state relay, 350 VDC, 120 mA, PCB mounting, CPC1330G
Order No.: 75P1904
EAN: 4099891887698
MPN:
CPC1330G
Unit Price (€ / pc.)
1.6541 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Relay, CPC1330G, LITTELFUSE
A single-pole, normally open solid state relay with an enhanced input to output isolation barrier of 5000 Vrms. The relay output is constructed with efficient MOSFET switches that use the IXYS integrated circuits division's patented OptoMOS architecture. The input, a highly efficient infrared LED, controls the optically coupled output.
Features
- 100% solid state
- Low drive power requirements
- Arc-free with no snubbing circuits
- No EMI/RFI generation
Applications
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Security
- Aerospace
- Industrial controls
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 120 mA | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 350 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
