CPC1333GRTR | Littelfuse

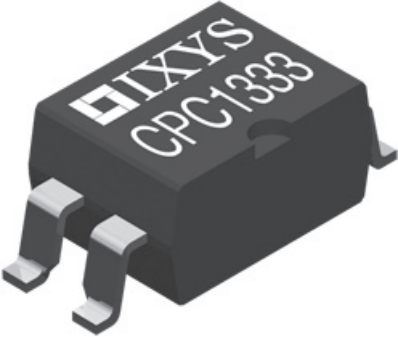

Solid state relay, 350 VDC, 130 mA, PCB mounting, CPC1333GRTR
Order No.: 75P1909
EAN: 4099891887742
MPN:
CPC1333GRTR
Unit Price (€ / pc.)
1.6422 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Relay, CPC1333GRTR, LITTELFUSE
A single-pole, normally closed solid-state relay with an enhanced input to output isolation barrier of 5000 Vrms. The relay output is constructed with efficient MOSFET switches that use IXYS integrated circuits' patented OptoMOS architecture. The input, a highly efficient infrared LED, controls the optically coupled output.
Features
- Low drive power requirements
- Arc-free with no snubbing circuits
- No EMI/RFI generation
- Flammability rating UL 94 V-0
Applications
- Telephony switching
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Security
- Aerospace
- Industrial controls
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 130 mA | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 350 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
