CPC1726Y | Littelfuse

Solid state relay, 250 VDC, 1000 mA, PCB mounting, CPC1726Y

Order No.: 75P1923
EAN: 4099891887889
MPN:
CPC1726Y
Littelfuse
CPC1726Y Littelfuse Solid State Relays

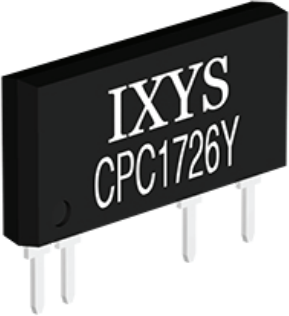

Image may differ
Unit Price (€ / pc.)
3.3558 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
3.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
3.3558 €

Relay, CPC1726Y, LITTELFUSE

A normally open solid state relay that employs optically coupled MOSFET technology to provide 2500 Vrms of input to output isolation. IXYS integrated circuits brings OptoMOS technology, reliability and compact size. The optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. The combination of low on-resistance and high load current handling capabilities makes the relay suitable for a variety of high-performance switching applications.

Features

  • Power SIP package
  • High reliability
  • Low drive power requirements
  • No EMI/RFI generation
  • Flammability rating UL 94 V-0

Applications

  • Industrial controls
  • Motor control
  • Robotics
  • Medical equipment
  • Instrumentation
  • Multiplexers
  • Data acquisition
  • Electronic switching
  • I/O subsystems
  • Meters
  • IC equipment
  • Home appliances
Technical specifications
LED display Yes
Assembly PCB mounting
Rated current 1000 mA
Voltage V RRM (peak reverse voltage) 5 V
Voltage 250 VDC
Logistics
Country of origin PH
Customs tariff number 85414900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
