CPC1966B | Littelfuse

Solid state relay, zero voltage switching, 20-240 VAC, 3 A, PCB mounting, CPC1966B

Order No.: 75P1943
EAN: 4099891888084
MPN:
CPC1966B

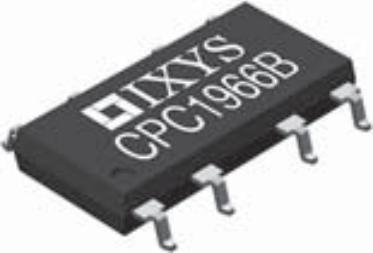

CPC1966B Littelfuse Solid State Relays
Image may differ
Unit Price (€ / pc.)
4.0817 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
408.17 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
4.0817 €

Power switch, CPC1966B, LITTELFUSE

An AC solid-state switch utilizing dual power SCR outputs. This device also includes zero-cross turn-on circuitry and is specified with a blocking voltage of 800 VP. In addition, the tightly controlled zero-cross circuitry ensures low-noise switching of AC loads by minimizing the generation of transients. The optically coupled input and output circuits provide 5000 Vrms of isolation and noise immunity between the control and load circuits. As a result, It's well suited for industrial environments where electromagnetic interference would disrupt the operation of plant facility communication and control systems.

Features

  • Zero-crossing switching
  • DC control, AC output
  • Optically isolated
  • Low EMI and RFI generation
  • High noise immunity

Applications

  • Programmable control
  • Process control
  • Power control panels
  • Remote switching
  • Gas pump electronics
  • Contactors
  • Large relays
  • Solenoids
  • Motors
  • Heaters
Technical specifications
Montage Leiterplattenmontage
Nennstrom 3 A
Schaltart nullspannungsschaltend
Spannung V RRM (Spitzensperrspannung) 5 V
Spannung 20-240 VAC
Logistics
Ursprungsland PH
Zolltarifnummer 85414900
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
