CPC1976Y | Littelfuse

Solid state relay, zero voltage switching, 20-240 VAC, 2 A, PCB mounting, CPC1976Y

Order No.: 75P1951
EAN: 4099891888169
MPN:
CPC1976Y
Littelfuse
CPC1976Y Littelfuse Solid State Relays

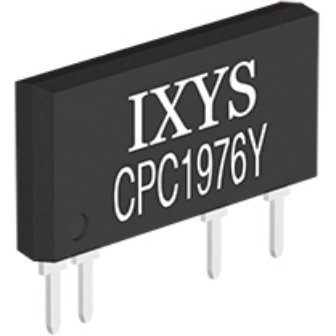

Image may differ
Unit Price (€ / pc.)
3.2011 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
3.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
3.2011 €

Power switch, CPC1976Y, LITTELFUSE

An AC solid-state switch utilizing dual-power SCR thyristor outputs. This device also includes zero-cross turn-on circuitry and is specified with a blocking voltage of 600 VP. In addition, tightly controlled zero-cross circuitry ensures low-noise switching of AC loads by minimizing the generation of transients. The optically coupled input and output circuits provide 3750 Vrms of isolation and noise immunity between the control and load circuits. As a result, it's well suited for industrial environments where electromagnetic interference would disrupt the operation of plant facility communication and control systems.

Features

  • Zero-crossing detection
  • DC control, AC output
  • Optically isolated
  • Low EMI and RFI generation
  • High noise immunity
  • Flammability rating UL 94 V-0

Applications

  • Programmable control
  • Process control
  • Power control panels
  • Remote switching
  • Gas pump electronics
  • Contactors
  • Large relays
  • Solenoids
  • Motors
  • Heaters
Technical specifications
Assembly PCB mounting
Rated current 2 A
Switching Mode zero voltage switching
Voltage V RRM (peak reverse voltage) 5 V
Voltage 20-240 VAC
Logistics
Country of origin PH
Customs tariff number 85414900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
