CPC1983YE | Littelfuse

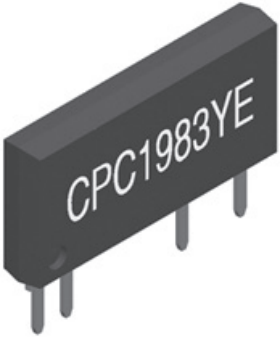

Solid state relay, 600 VDC, 500 mA, PCB mounting, CPC1983YE
Order No.: 75P1958
EAN: 4099891888237
MPN:
CPC1983YE
Unit Price (€ / pc.)
4.4625 € *
Available: 0 pcs.
Available in 4 Days: 75 pcs.
Leadtime: 23 Weeks **
Power relay, CPC1983YE, LITTELFUSE
A single-pole, normally open solid state power relay, rated for up to 0.5 ADC / Arms continuous load current, with IXYS integrated circuits, brings OptoMOS technology, reliability, and compact size. It employs optically coupled MOSFET technology to provide 4000 Vrms of input to output isolation. The optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. This combination of low on-resistance and high load current handling capability makes this relay suitable for a variety of high performance switching applications.
Features
- Power SIP package
- High reliability
- Low drive power requirements
- No EMI/RFI generation
- Flammability rating UL 94 V-0
Applications
- Industrial controls
- Motor control
- Robotics
- Medical equipment
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- IC equipment
- Home appliances
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 500 mA | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 600 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
