CPC40055ST | Littelfuse

Solid state relay, 20-280 VAC, 5 A, PCB mounting, CPC40055ST

Order No.: 75P1971
EAN: 4099891888367
MPN:
CPC40055ST
Littelfuse
CPC40055ST Littelfuse Solid State Relays

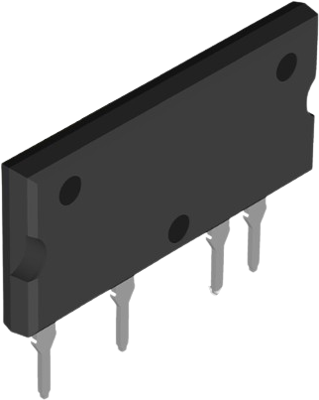

Image may differ
Unit Price (€ / pc.)
10.6029 € *
Available: 0 pcs.
Leadtime: 39 Weeks **
Total Price:
10.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
195 pcs.
10.6029 €

Power switch, CPC40055ST, LITTELFUSE

An AC solid-state switch utilizing dual power SCR outputs. This device includes zero-cross turn-on circuitry and is specified with an 800 VP blocking voltage. Tightly controlled zero-cross circuitry ensures low-noise switching of AC loads by minimizing the generation of transients. The optically coupled input and output circuits provide exceptional noise immunity and 2500 Vrms of isolation. As a result, it's well suited for industrial environments where electromagnetic interference would disrupt the operation of communications and control systems. The unique SuperSIP package pioneered by IXYS integrated circuits allows solid-state relays to achieve the highest load current currently available in any similar-sized package. This package features a unique process in which the silicon chips are softly soldered onto the ceramic direct copper bond (DCB) substrate instead of the traditional copper leadframe. The DCB ceramic, the same substrate used in high-power modules, not only provides 2500 Vrms isolation but also very low junction-to-case thermal impedance (0.35 °C/W).

Features

  • Zero-cross switching
  • DC control, AC output
  • Optically isolated
  • Low EMI and RFI generation
  • High noise immunity
  • Flammability rating UL 94 V-0

Applications

  • Lighting - tungsten load, electrical ballast
  • Programmable control
  • Process control
  • Power control panels
  • Remote switching
  • Gas pump electronics
  • Contactors
  • Large relays
  • Solenoids
  • Motors
  • Heaters
Technical specifications
Assembly PCB mounting
Rated current 5 A
Voltage V RRM (peak reverse voltage) 5 V
Voltage 20-280 VAC
Logistics
Country of origin PH
Customs tariff number 85414900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
