LCA125L | Littelfuse

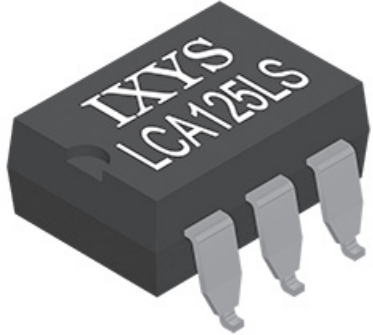

Solid state relay, 300 VDC, 170 mA, PCB mounting, LCA125L
Order No.: 75P2049
EAN: 4099891889142
MPN:
LCA125L
Unit Price (€ / pc.)
3.2011 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Relay, LCA125L, LITTELFUSE
A normally open solid state relay that uses optically coupled MOSFET technology to provide 3750 Vrms of input to output isolation. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. It can be used to replace mechanical relays and offers the superior reliability associated with semiconductor devices. Because it has no moving parts, it offers faster, bounce-free switching.
Features
- Current limiting
- Low drive power requirements
- Greater reliability than electromechanical relays
- FCC compatible
- VDE compatible
- No EMI/RFI generation
- Small 6-pin package
- Flammability rating UL 94 V-0
Applications
- Telecom switching
- Tip/ring circuits
- Modem switching
- Hook switch
- Dial pulsing
- Ground start
- Ringing injection
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Security
- Industrial controls
Technical specifications
| LED-Anzeige | Yes | |
| Montage | Leiterplattenmontage | |
| Nennstrom | 170 mA | |
| Spannung V RRM (Spitzensperrspannung) | 5 V | |
| Spannung | 300 VDC |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85414900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
