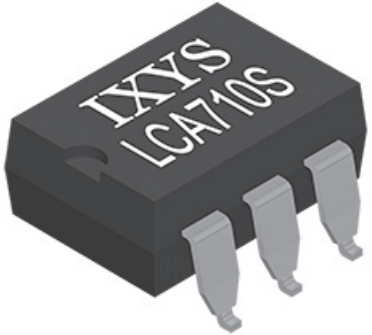

LCA710S | Littelfuse
Solid state relay, 60 VDC, 1 A, PCB mounting, LCA710S
Order No.: 75P2072
EAN: 4099891889371
MPN:
LCA710S
Unit Price (€ / pc.)
4.165 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Relay, LCA710S, LITTELFUSE
A normally open solid state relay featuring low on-resistance and high current handling capability. It uses optically coupled MOSFET technology to provide 3750 Vrms of input to output isolation. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. It can be used to replace mechanical relays, and offers the superior reliability associated with semiconductor devices. Because it has no moving parts, it can offer faster, bounce-free switching.
Features
- Low drive power requirements
- Greater reliability than electromechanical relays
- No EMI/RFI generation
- Small 6-pin package
- Flammability rating UL 94 V-0
Applications
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Security
- Industrial controls
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 1 A | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 60 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
