PD2601 | Littelfuse
Solid state relay, zero voltage switching, 600 VDC, 1 A, THT, PD2601
Order No.: 75P1841
EAN: 4099891887063
MPN:
PD2601
Unit Price (€ / pc.)
7.2233 € *
Available: 0 pcs.
Leadtime: 23 Weeks **

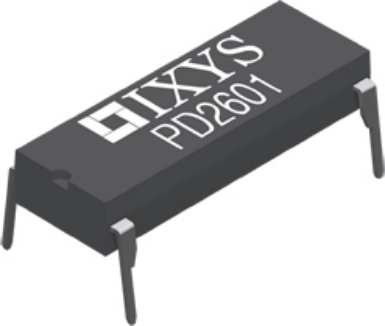

Solid state relay, PD2601, LITTELFUSE
An AC solid state switch uses optical coupling with dual-power SCR outputs to produce an alternative to optocoupler and Triac circuits. The switches are robust enough to provide a blocking voltage of up to 600 VP and a max surge current rating of 20 A. In addition, tightly controlled zero-cross circuitry ensures switching of AC loads without the generation of transients. The input and output circuits are optically coupled to provide 3750 Vrms of isolation and noise immunity between the control and load circuits. As a result, it is well suited for industrial environments where electromagnetic interference would disrupt the operation of electromechanical relays.
Features
- Zero-crossing detection
- DC control, AC output
- Low EMI and RFI generation
- High noise immunity
- VDE compatible
- Flammability rating UL 94 V-0
Applications
- Programmable control
- Process control
- Power control panels
- Remote switching
- Gas pump electronics
- Contactors
- Large relays
- Solenoids
- Motors
- Heaters
Technical specifications
| LED display | Yes | |
| Assembly | THT | |
| Rated current | 1 A | |
| Switching Mode | zero voltage switching | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 600 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
