PLA140LSTR | Littelfuse

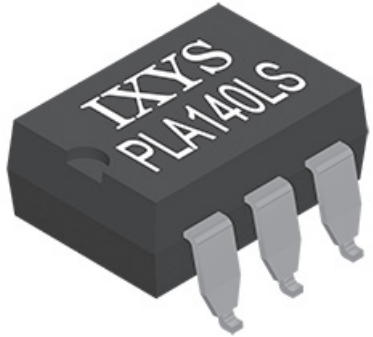

Solid state relay, 400 VDC, 200 mA, PCB mounting, PLA140LSTR
Order No.: 75P2162
EAN: 4099891890278
MPN:
PLA140LSTR
Unit Price (€ / pc.)
3.8080 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Relay, PLA140LSTR, LITTELFUSE
A single-pole, normally open solid state relay that uses optically coupled MOSFET technology to provide 3750 Vrms of input to output isolation. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. It also contains a built-in load current limiting feature. This feature, combined with low on-resistance and very high load current handling capabilities, makes it suitable for a variety of high-performance switching applications.
Features
- Current limiting
- Low drive power requirements
- Greater reliability than electromechanical relays
- No EMI/RFI generation
- FCC compatible
- VDE compatible
- Small 6-pin package
- Flammability rating UL 94 V-0
Applications
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Security
- Industrial controls
- Automotive
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 200 mA | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 400 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
