PLA160S | Littelfuse
Solid state relay, 300 VDC, 50 mA, PCB mounting, PLA160S
Order No.: 75P2172
EAN: 4099891890377
MPN:
PLA160S
Unit Price (€ / pc.)
3.7009 € *
Available: 0 pcs.
Leadtime: 23 Weeks **

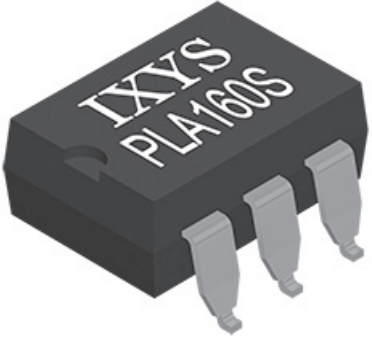

Relay, PLA160S, LITTELFUSE
A normally open relay with a performance leader that features the fastest switching speed (50 μs) available in an OptoMOS relay.
Features
- Low drive power requirements
- Greater reliability than electromechanical relays
- No EMI/RFI generation
- FCC compatible
- Small 6-pin package
- Flammability classification rating of V-0
Applications
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Security systems
- Industrial controls
- Reed relay replacement
Technical specifications
| Assembly | Leiterplattenmontage | |
| Rated current | 50 mA | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 300 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
