PLA170 | Littelfuse

Solid state relay, 800 VDC, 180 mA, PCB mounting, PLA170

Order No.: 75P2174
EAN: 4099891890391
MPN:
PLA170
PLA170 Littelfuse Solid State Relays
Image may differ
Unit Price (€ / pc.)
2.9155 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
728.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
250 pcs.
2.9155 €

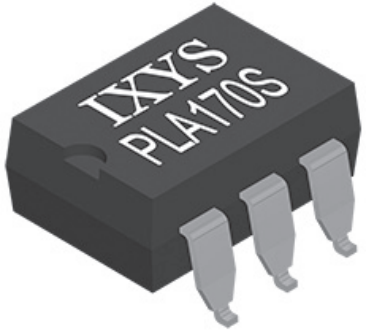

Relay, PLA170, LITTELFUSE

A single-pole, normally open solid state relay that uses optically coupled MOSFET technology to provide an enhanced input to output isolation of 3750 Vrms. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. Designed to replace electromechanical relays, it offers the superior reliability associated with solid state devices, and provides bounce-free switching.

Features

  • Low drive power requirements
  • No EMI/RFI generation
  • Small 6-pin package
  • Flammability rating UL 94 V-0

Applications

  • Instrumentation
  • Multiplexers
  • Data acquisition
  • Electronic switching
  • I/O subsystems
  • Meters
  • Medical equipment
  • Security
  • Industrial controls
Technical specifications
LED-Anzeige Yes
Montage Leiterplattenmontage
Nennstrom 180 mA
Spannung V RRM (Spitzensperrspannung) 5 V
Spannung 800 VDC
Logistics
Ursprungsland PH
Zolltarifnummer 85414900
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
