PLA171PTR | Littelfuse

Solid state relay, 800 VDC, 100 mA, PCB mounting, PLA171PTR

Order No.: 75P2178
EAN: 4099891890438
MPN:
PLA171PTR
Littelfuse
PLA171PTR Littelfuse Solid State Relays
Image may differ
Unit Price (€ / pc.)
3.0107 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
3.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
3.0107 €

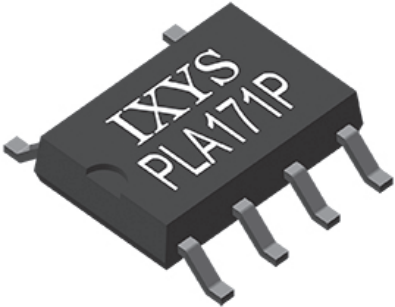

Relay, PLA171PTR, LITTELFUSE

Specially designed to provide 7 mm of separation between the two output pins, the IXYS integrated circuits' relay is a single-pole, normally open solid state relay that uses optically coupled MOSFET technology to provide an enhanced input to output isolation of 5000 Vrms. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. It is designed to replace, and offers superior reliability over, electromechanical relays. This device provides bounce-free switching in a compact surface-mount package.

Features

  • Low drive power requirements
  • No EMI/RFI generation
  • Flammability rating UL 94 V-0

Applications

  • Instrumentation
  • Multiplexers
  • Data acquisition
  • Electronic switching
  • I/O subsystems
  • Meters
  • Medical equipment
  • Automotive high - voltage circuitry
  • Industrial controls
Technical specifications
LED display Yes
Assembly PCB mounting
Rated current 100 mA
Voltage V RRM (peak reverse voltage) 5 V
Voltage 800 VDC
Logistics
Country of origin PH
Customs tariff number 85414900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
