PLA192 | Littelfuse

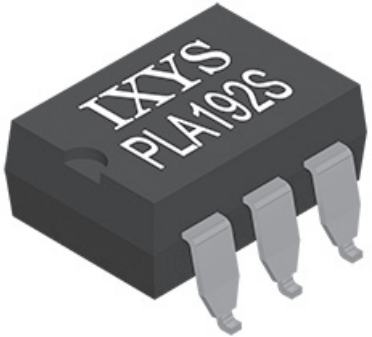

Solid state relay, 600 VDC, 150 mA, PCB mounting, PLA192
Order No.: 75P2187
EAN: 4099891890520
MPN:
PLA192
Unit Price (€ / pc.)
3.0940 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Relay, PLA192, LITTELFUSE
A single-pole, normally open solid state relay that provides 5000 Vrms of input to output isolation. It can be used to replace mechanical relays, while offering the superior reliability associated with semiconductor devices. Employing the patented OptoMOS architecture, the highly efficient infrared LED controls the optically coupled outputs. Because they have no moving parts, they offer bounce-free switching.
Features
- Low drive power requirements
- Greater reliability than electromechanical relays
- No EMI/RFI generation
- Small 6-pin package
- Flammability rating UL 94 V-0
Applications
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Industrial controls
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 150 mA | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 600 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
