PLB150STR | Littelfuse

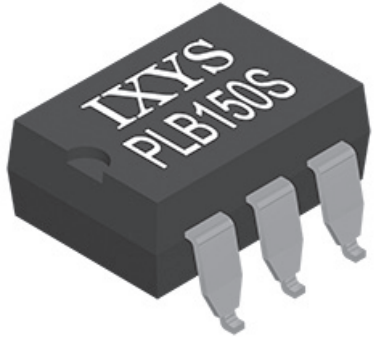

Solid state relay, 250 VDC, 250 mA, PCB mounting, PLB150STR
Order No.: 75P2198
EAN: 4099891890636
MPN:
PLB150STR
Unit Price (€ / pc.)
4.0936 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Relay, PLB150STR, LITTELFUSE
A single-pole, normally closed solid state relay that uses optically coupled technology to provide an enhanced 3750 Vrms isolation barrier between the input and the output of the relay. The efficient MOSFET switches use IXYS integrated circuits' patented OptoMOS architecture while the optically coupled output is controlled by a highly efficient infrared LED.
Features
- Low drive power requirements
- Greater reliability than electromechanical relays
- FCC compatible
- VDE compatible
- No EMI/RFI generation
- Small 6-pin package
- Flammability rating UL 94 V-0
Applications
- Telecom switching
- Tip/ring circuits
- Modem switching
- Hook switch
- Dial pulsing
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Industrial controls
Technical specifications
| LED-Anzeige | Yes | |
| Montage | Leiterplattenmontage | |
| Nennstrom | 250 mA | |
| Spannung V RRM (Spitzensperrspannung) | 5 V | |
| Spannung | 250 VDC |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85414900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
