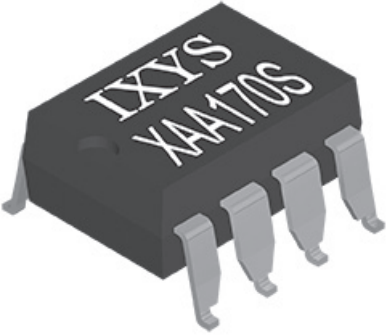

XAA170 | Littelfuse

Relay, XAA170, LITTELFUSE

A dual, normally open solid state relay comprises of two independent, optically coupled relays in a single 8-pin package. Using optically coupled MOSFET technology, it provides 3750 Vrms of input to output isolation. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. By incorporating two independent single-pole relays into a single 8-pin package, it saves board space by providing a more compact design solution than two discrete single-pole relays in a variety of applications.

Features

• Low drive power requirements
• Greater reliability than electromechanical relays
• FCC compatible
• VDE compatible
• No EMI/RFI generation
• Small 8-pin package
• Flammability rating UL 94 V-0

Applications

• Telecommunications
• Telecom switching
• Tip/ring circuits
• Modem switching
• Hook switch
• Dial pulsing
• Ground start
• Ringing injection
• Instrumentation
• Multiplexers
• Data acquisition
• Electronic switching
• I/O subsystems
• Meters
• Medical equipment
• Security
• Industrial controls
