MEK600-04DA | Littelfuse

FRED module, dual, 400 V, Y4-M6, Littelfuse MEK600-04DA

Order No.: 74P1625
EAN: 4099891784904
MPN:
MEK600-04DA
Series: FRED-MODUL
MEK600-04DA Littelfuse Switching Diodes

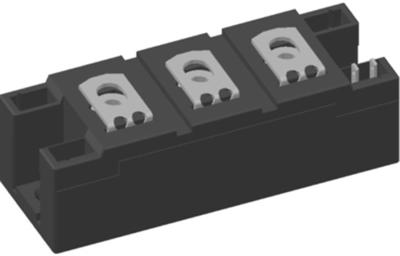

Image may differ
Unit Price (€ / pc.)
94.1766 € *
Available: 0 pcs.
Leadtime: 37 Weeks **
Total Price:
565.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
6 pcs.
94.1766 €

FRED, MEK600-04DA, LITTELFUSE

Fast recovery epitaxial diode with an isolation voltage of 3600 V, advanced power cycling, avalanche voltage rated for reliable operation, soft reverse recovery for low EMI/RFI, and DCB ceramic base plate.

Features

  • Planar passivated chip
  • Low leakage current
  • Very short recovery time
  • Improved thermal behaviour
  • Very low Irm-values
  • Very soft recovery behaviour
  • Low Irm reduces power dissipation within the diode
  • Low Irm reduces turn-on loss in the commutating switch
  • Industry standard outline
  • RoHS compliant
  • Reduced weight

Applications

  • Antiparallel diode for high frequency switching devices
  • Antisaturation diode
  • Snubber diode
  • Free wheeling diode
  • Rectifiers in switch mode power supplies (SMPS)
  • Uninterruptible power supplies (UPS)
Technical specifications
Anzahl der Dioden 2
Ausführung dual
Gehäuse Y4-M6
max. Temperatur 125 °C
min. Temperatur -40 °C
Montage Schraubmontage
Sperrspannung 400 V
Logistics
Ursprungsland PH
Zolltarifnummer 85411000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
