BTA16-600CW3G | Littelfuse

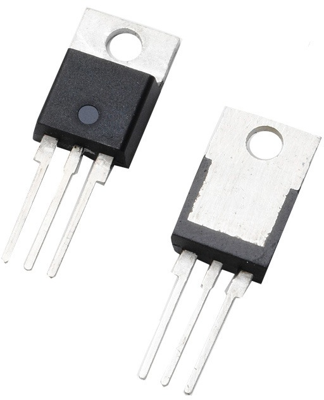

Triac, 600 V (RRM), 16 A, TO-220AB, Littelfuse BTA16-600CW3G
Unit Price (€ / pc.)
3.1416 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Triac, BTA16-600CW3G, Littelfuse
This triac is designed for high performance full-wave ac control applications where high noise immunity and commutating di/dt are required.
Features
- Minimizes snubber networks for protection
- Industry standard TO-220AB package
- Internally isolated (2500 VRMS)
- Low leakage at high voltage
Applications
- AC motor control
- White goods
Technical specifications
| Anzahl der Pins | 3 | |
| Ausführung | Triac | |
| Gate-Trigger-Spannung | 1.1 V | |
| Gate-Trigger-Strom | 35 mA | |
| Gehäuse | TO-220AB | |
| Haltestrom | 50 mA | |
| max. Strom | 16 A | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 600 V | |
| Spannungsanstiegsraten dV/dt | 1000 V/s |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85413000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
